Cold Rooms
Cold Rooms & Storages
Select a product to add to cart
-
+
ADD TO CART

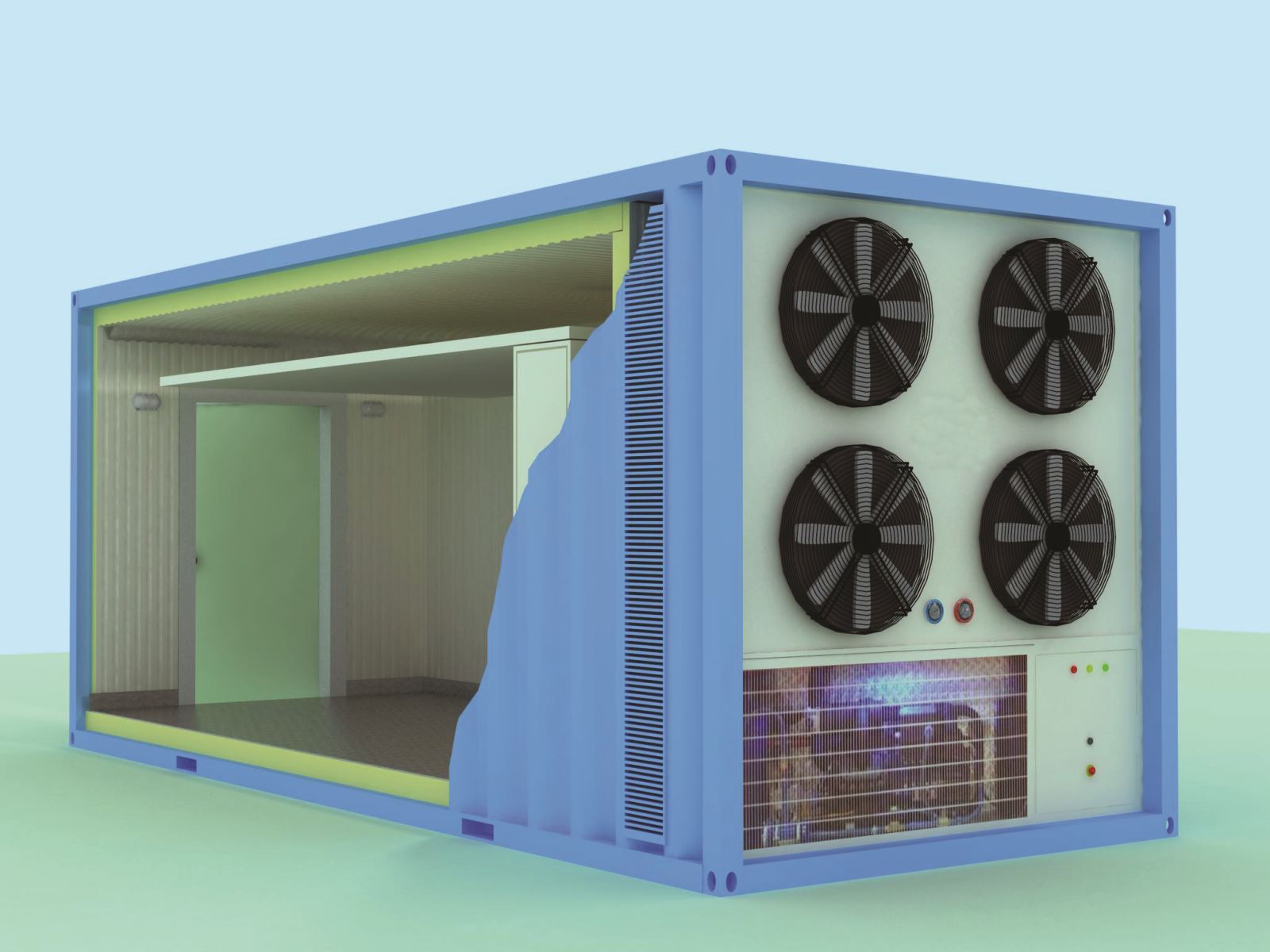

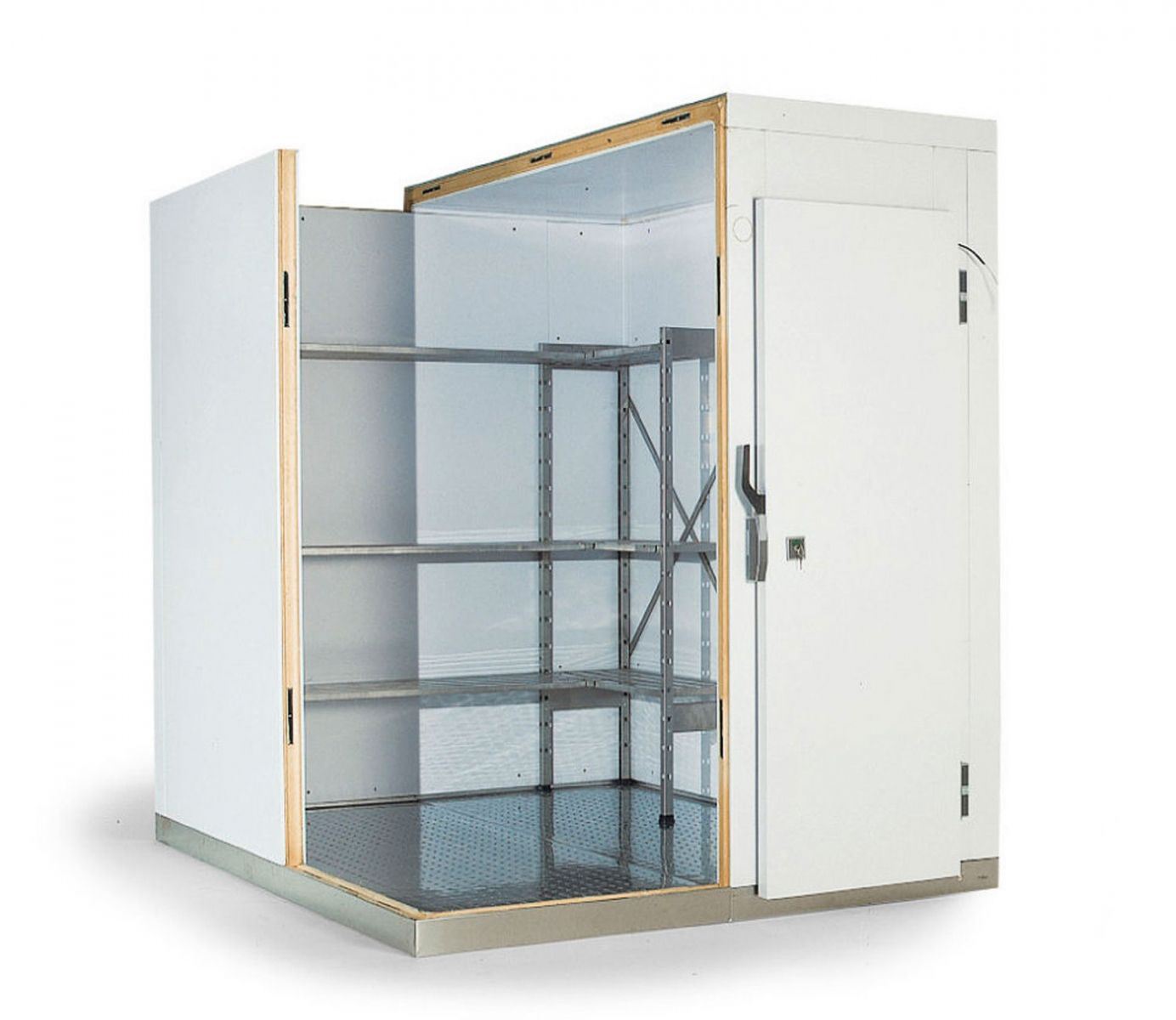

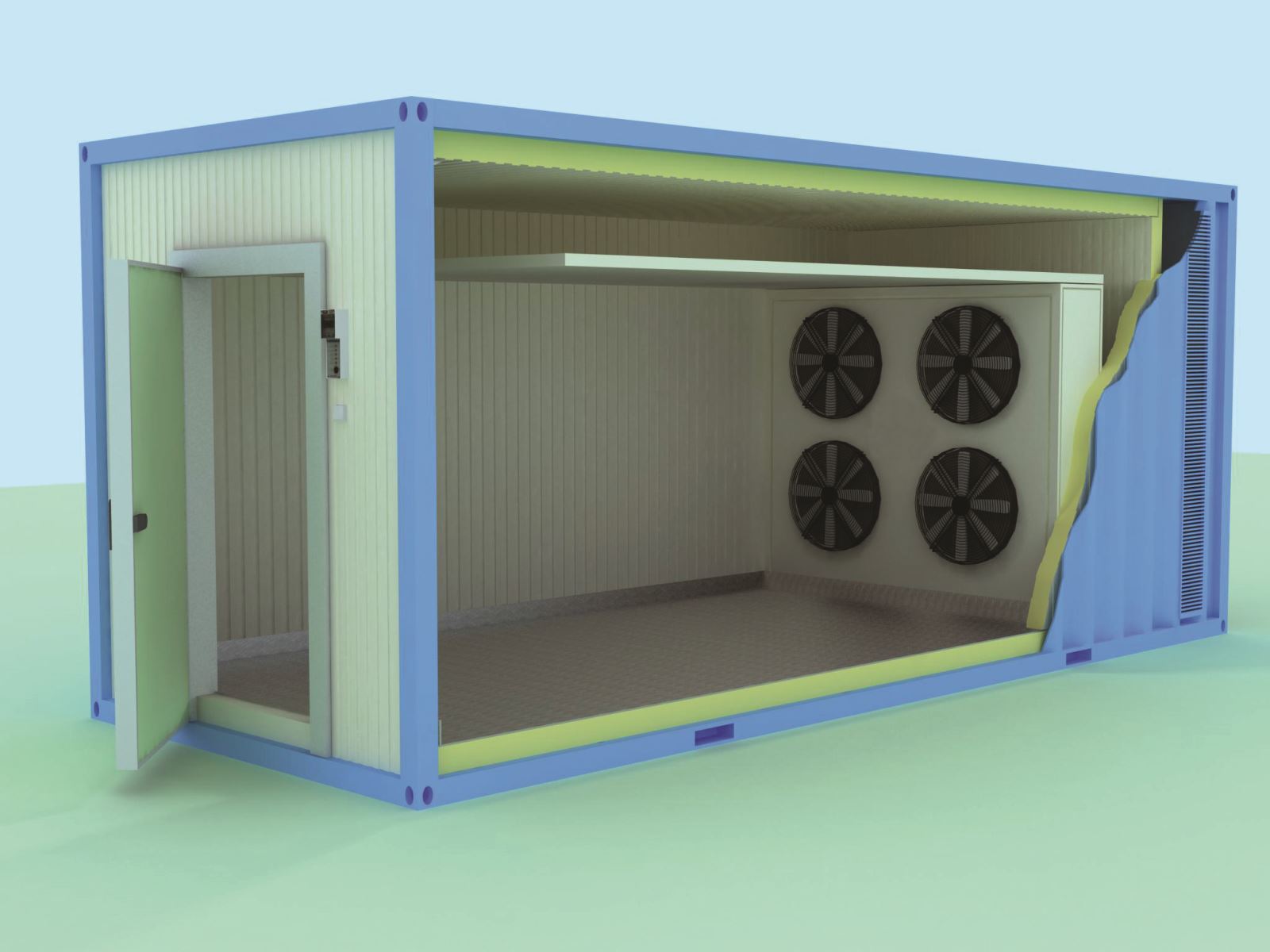

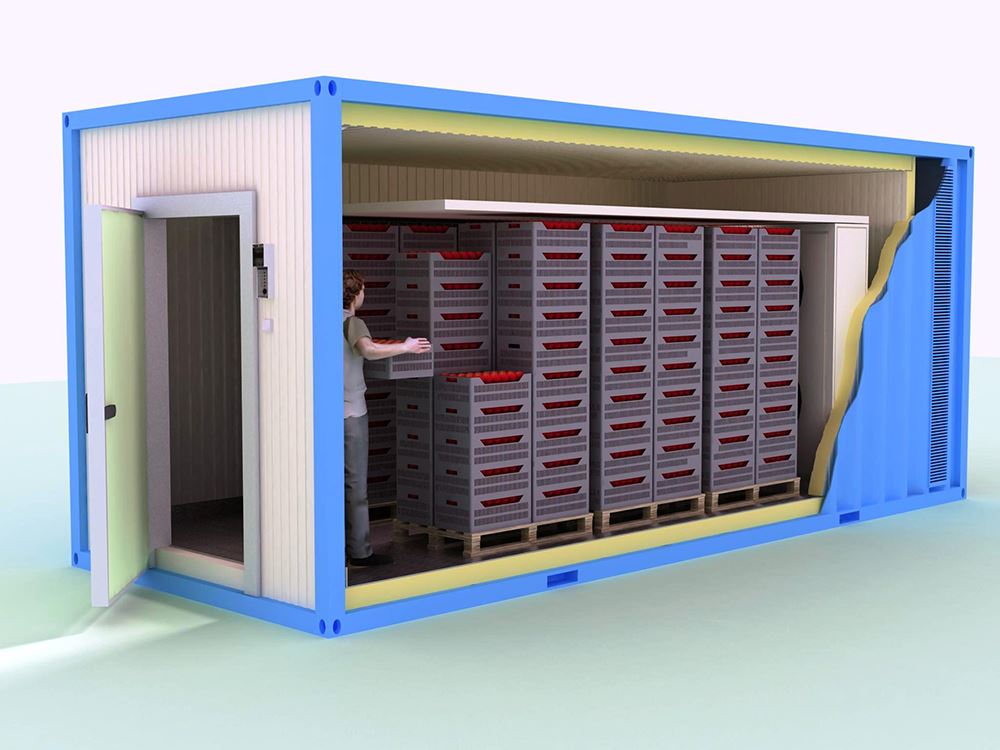

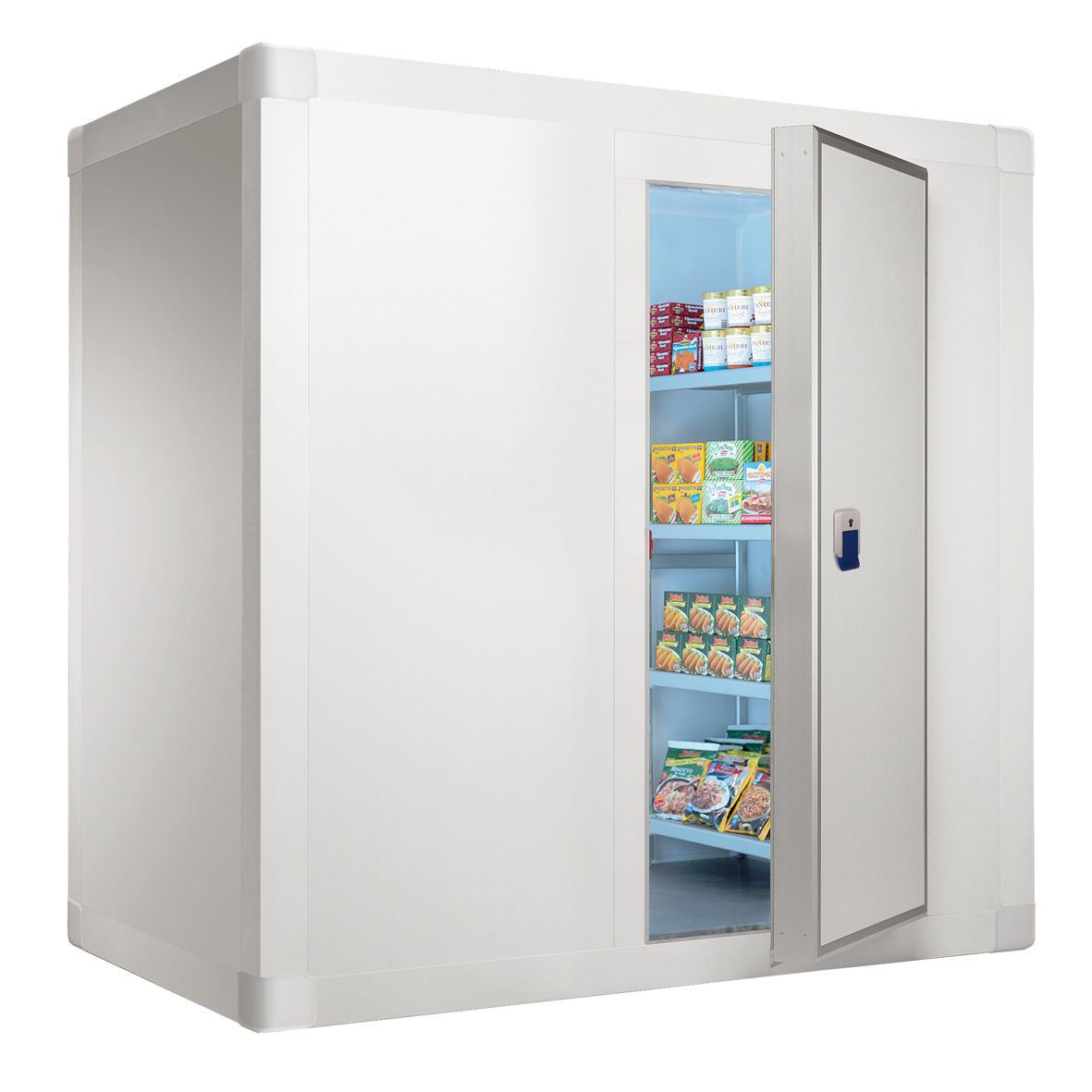

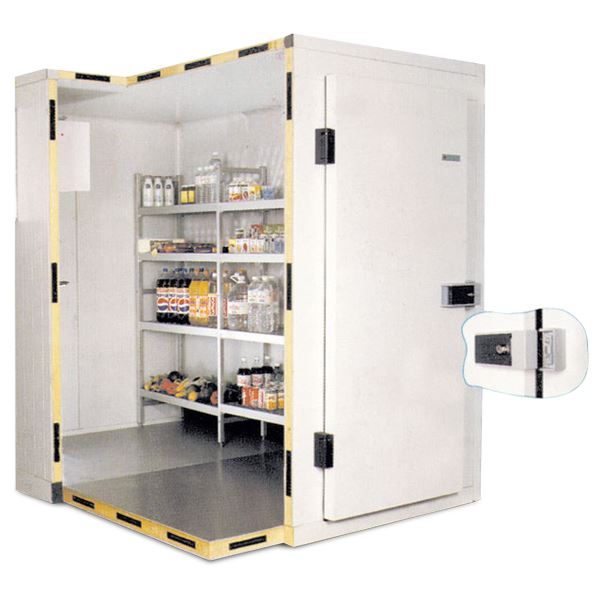

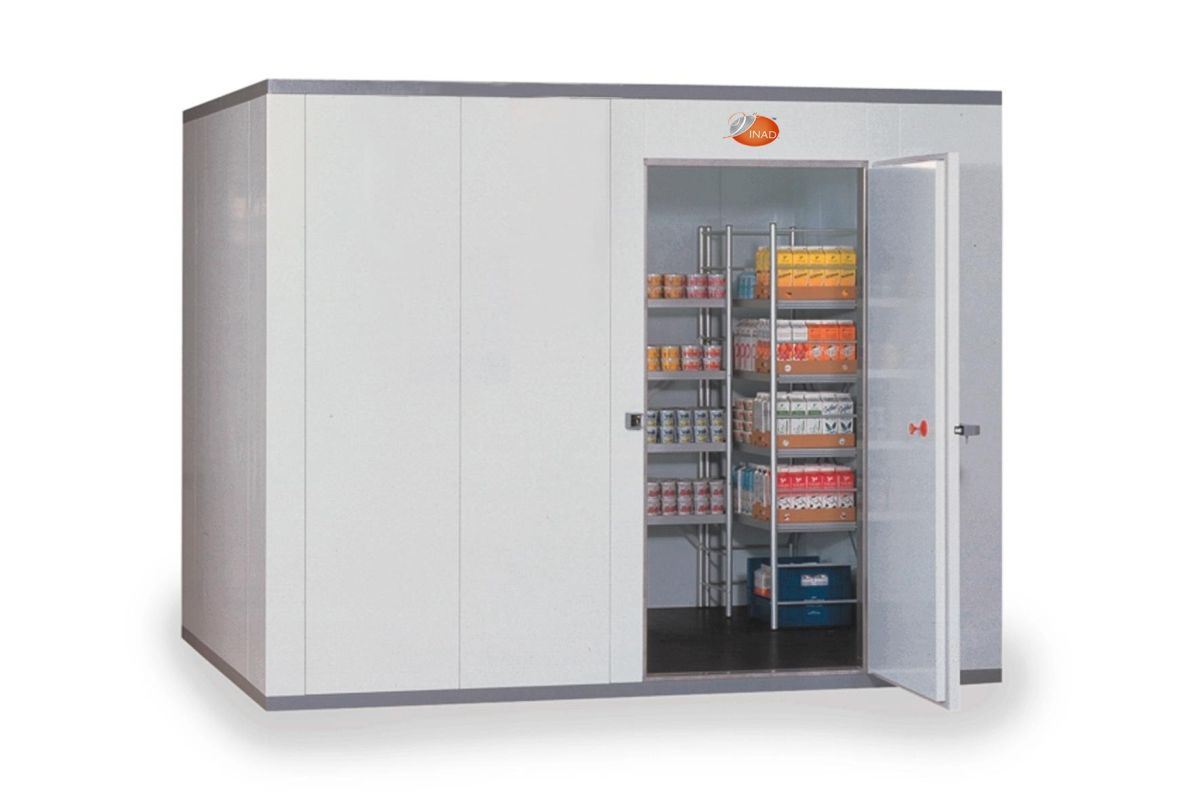

PORTABLE COLD STORAGES
GENERAL FEATURES
- It is light, durable and provides montage facility.
- It provides the best and the longest time storage of meat, milk, vegetable and all other food in the cold storages which are prepared.
- RAL 9002 is used with the electrostatic painted sheet metals.
- The thicness of the panel is manufactured as 80 mm with the fresh keeping rooms and 120 mm and 150 mm with the frozen storage rooms.
- Our panels are consisted of the side-by-side, dovetailed to each other and locking system.
- Its installation is made by the technical team using technical equipment.
- Gas: 404 A
COLD ROOM DOOR
GENERAL FEATURES
- The interior and exterior surfaces of the door are made of RAL 9002 electrostatic painted sheet metals and the inside is insulated with 42 kg/m3 density polyurethane injection.
- The door handles are of lockable-type with a safety mechanism that can be opened from inside and outside.
- The insulation thickness is made as 80 mm in the cold rooms and 120 mm and 150 mm in the frozen storages.
- Gas:404 A
GENEL FEATURES
- Perfect and continual heat insulation feature
- Perfect resistance against water and zero capillarity
- Resistance against freezing
- High and long term pressing resistance
- High elastic module
- Optimum water vapor diffusion resistance suitable to the site to be used.
- Gas:404 A
ACCESSORY
- Corner piece aluminum
- Corner plastic
- Armature
- Cold room door hinge
- Cold room door lock
| Model | Dimensions | Weight | Internal Size | Power | Power | Cooling Capacity |
| mm | kg | m3 | kW | kW | kW | |
| SD.10 | 2000 x 2000 x 2400 | 295 | 2,77 | 1,5 | 1,62 | 3,86 |
| SD.30 | 2400 x 2400 x 2400 | 415 | 3,1 | 2 | 2,2 | 5,03 |
| SD.50 | 2400 x 3600 x 2400 | 545 | 3,7 | 2,5 | 2,33 | 5,68 |
| SD.70 | 4000 x 4000 x 2400 | 722 | 6 | 3 | 2,33 | 6,30 |
| SD.90 | 5000 x 4000 x 2400 | 888 | 7,37 | 3 | 3,02 | 7,26 |
| SD.110 | 5000 x 5000 x 2400 | 1099 | 10,69 | 4 | 4,01 | 9,01 |
